Sockets (PY...)
- ✓ Ex protection: Ex II 2 GD Ex d IIC T5 Ex tD A21
- ✓ Certificate: SIRA 01 ATEX 1264
- ✓ Installation: zone 1 - 2 - 21 - 22
- ✓ Body and cover in Low copper content aluminium alloy
- ✓ PVC blinding plug with chain to prevent from loosing it
- ✓ Brass pins
- ✓ Stainless steel earth screws
- ✓ Fixing lugs
- ✓ Plug not included
- ✓ Ral 7035 epoxy coating
- ✓ manufacturer: cortem group-italy

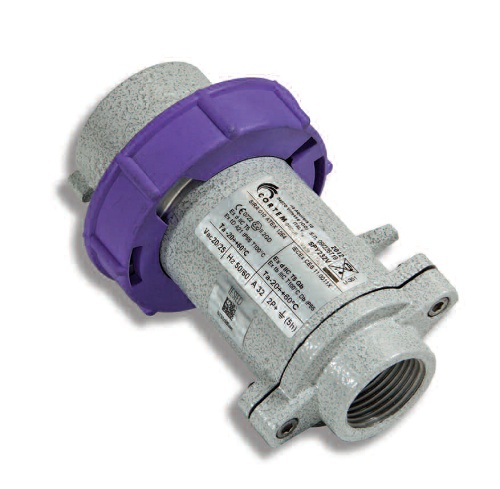

دریافت فایل ضمیمهPlugs for PY sockets (SPY...)
- ✓ Ex protection: Ex II 2 GD Ex d IIC T5 Ex tD A21
- ✓ Certificate: SIRA 01 ATEX 1264
- ✓ Installation: zone 1 - 2 - 21 - 22
- ✓ Body in Low copper content aluminium alloy
- ✓ Stainless steel screws
- ✓ Nickel-plated brass pins
- ✓ PVC ring
- ✓ Ral 7035 epoxy coating
- ✓ manufacturer: cortem group-italy
دریافت فایل ضمیمهSockets with automatic circuit breaker (FSQC...)
- ✓ Ex protection: Ex II 2 GD Ex d IIC T6 Ex tD A21
- ✓ Certificate: CESI 04 ATEX 043
- ✓ Installation: zona1 - 2 - 21 - 22
- ✓ Body, cover and external handle in low copper content aluminium alloy
- ✓ Closing plug with chain to prevent from loosing it
- ✓ Stainless steel earth screws
- ✓ Automatic circuit breaker
- ✓ Brass pins
- ✓ Fixing lugs
- ✓ Ral 7035 epoxy coating
- ✓ manufacturer: cortem group-italy
دریافت فایل ضمیمهPlugs for FSQC sockets (FP...)
- ✓ Ex protection: Ex II 2 GD Ex d IIC T6 Ex tD A21
- ✓ Certificate: CESI 04 ATEX 043
- ✓ Installation: zone 1 - 2 - 21 - 22
- ✓ Copper-free aluminiun alloy
- ✓ Nickel-plated brass pins
- ✓ Ral 7035 epoxy coating
- ✓ manufacturer: cortem group-italy
دریافت فایل ضمیمهPlugs and Sockets SolConeX Series 8570, 8571, 8575, 8579, 8581(zone 1,2,21,22)
- ✓ Various versions – 16 A, extra-low voltage – 16, 32, 63, 125 A
- ✓ Large handle, can be locked in position 0 and I
- ✓ Clear switch position indication Optimal contact by means of self-cleaning lamellar contacts
- ✓ Low insertion and withdrawal forces through individually encapsulated pins, flexibly embedded
- ✓ With motor switching capacity AC-3 acc. to IEC 60947-3
- ✓ Optional auxiliary contacts for control and signalling purposes
- ✓ IP66 in any application position
- ✓ Ex II 2 G Ex de IIC T6 (Ta = - 30 ... + 45 °C)SolConeX 16 A extra-low voltage 8575/13
- ✓ Certificate: PTB 01 ATEX 1044
- ✓ Cable gland 1 x M25 x 1.5 1 x M25 x 1.5 (positioning on the top or at the side,Stopping plug 1 x M25 x 1.5
- ✓ Ex II 2 G Ex de IIC T6 (Ta = - 30 ... + 55 °C)SolConeX 16 A 8570/11
- ✓ Certificate: PTB 03 ATEX 1227
- ✓ rated operational voltage: max. 690 V AC max. 110 V DC
- ✓ Cable entries Cable gland:1 x M25 x 1.5,Stopping plug:1 x M25 x 1.5
- ✓ Ex II 2 G Ex ed IIC T6 (Ta = - 30 ... + 40 °C) Ex II 2 G Ex ed IIC T5 (Ta = - 30 ... + 55 °C)SolConeX 32 A 8571/11
- ✓ Certificate:PTB 04 ATEX 1060
- ✓ rated operational voltage: max. 690 V AC max. 110 V DC
- ✓ Cable gland 1 x M32 x 1.5,Stopping plug 1 x M32 x 1.5
- ✓ Ex II 2 G Ex d e IIC T6 (Ta = - 30 ...+ 40 °C) Ex II 2 G Ex d e IIC T5 (Ta = - 30 ...+ 55 °C)SolConeX 63 A 8579/31
- ✓ Certificate: PTB 01 ATEX 1150
- ✓ rated operational voltage:max. 690 V
- ✓ cable gland:1 x M50 x 1.5, cable dia. range 23 ... 35 mm,Stopping plug:1 x M25 x 1.5
- ✓ Ex II 2 G Ex d e IIC T6 (Ta = - 30 ...+ 40 °C) Ex II 2 G Ex d e IIC T5 (Ta = - 30 ...+ 50 °C)SolConeX 125 A 8581/31
- ✓ Certificate:PTB 01 ATEX 1161
- ✓ rated operational voltage:max. 690 V
- ✓ Cable entries Cable gland 1 x M63 x 1.5,Stopping plug 1 x M25 x 1.5, 1 x M63 x 1.5
- ✓ manufacturer: stahl-germany
دریافت فایل ضمیمهCable Reel SolConeX Series 502 Ex(zone 1 & 2)
- ✓ Material – Solid, halogen-free reel body of hard rubber – Robust steel tube rack, black powder coated
- ✓ Inner wedge brake
- ✓ High mechanical strength
- ✓ Resistant to chemical influences
- ✓ UV- und weatherproof
- ✓ Maintenance-free
- ✓ Ex II 2 G EEx de IIC T6
- ✓ Certificate: PTB 03 ATEX 1186
- ✓ Rated voltage max. 690 V Rated current 16 A Short circuit protection 16 A gG
- ✓ Ambient temperature -20 ... +40 °C
- ✓ Degree of protection 54
- ✓ manufacturer: stahl-germany
دریافت فایل ضمیمه
