Ex-Proof Visual-Audible Signalling Sounder VS1
- ✓ Ex II 2 G Ex e mb [ib] IIC T6/T5/T4 Gb IP66
- ✓ -20 °C ≤ Ta ≤ +40 °C/+50 °C/+60 °C
- ✓ Zone 1, 2
- ✓ Explosion proof visual-audible signalling sounder for universal applications in explosion endangered areas
- ✓ 3 tone types and up to 4 tone sequencies selectable via DIP switch
- ✓ Power supply from mains (230 V AC)
- ✓ w 5 lens colours
- ✓ sound pressure: 90dB
- ✓ Visual signalling 2 xenon tubes with ~ 1 J
- ✓ manufacturer: Auer Signal - Austria
دریافت فایل ضمیمهExplosion-proof Audible Telephone Call Signalling Sounder AS1
- ✓ Ex II 2 G Ex e ib mb IIC T6 IP66
- ✓ Zone 1, 2
- ✓ explosion proof telephone call sounder for applications in industrial explosion endangered areas
- ✓ 4 tone types and tone frequencies selectable via DIP switch
- ✓ power supply via telephone call voltage
- ✓ works independently also during power failures
- ✓ Call voltage 32 V AC - 75 V AC
- ✓ ambient temperature -20 °C to +40 °C
- ✓ sound pressure: 90dB
- ✓ manufacturer: Auer Signal - Austria
دریافت فایل ضمیمهEx-Proof LED Signal beacon dSD
- ✓ Ex II 2 G Ex d e IIC T6 Gb
- ✓ Ex II 2 D Ex tb IIIC T80°C Db
- ✓ -55 °C ≤ Ta ≤ +55 °C
- ✓ Zone 1, 2, 21, 22
- ✓ Robust visual signal beacon with LED technology
- ✓ High signalling effect and long life time
- ✓ For versatile use in zones 1, 21, 2, 22
- ✓ 4 different operating modes selectable:
- ✓ LED steady light
- ✓ LED flashing light
- ✓ LED strobe light
- ✓ LED rotating light
- ✓ Sturdy aluminium housing
- ✓ Hardened glass lens (borosilicate glass)
- ✓ Protection case made of stainless steel
- ✓ Compact dimensions
- ✓ Terminal connection chamber ‘d’
- ✓ in protection class increased safety ‘e’
- ✓ For continuous operation
- ✓ Available in 5 LED colours
- ✓ manufacturer: Auer Signal - Austria

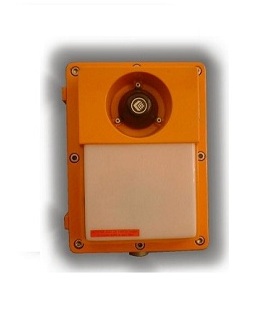

دریافت فایل ضمیمهCOMBINATED FLASHING BEACON/SOUNDER ATEX EEx SGV214A6/7CA
- ✓ Explosion-proof degree: EEx d IIB T6
- ✓ IP-rating: 66
- ✓ power-supply: 48-24 Vdc, 115Vac or 230 Vac
- ✓ consumption: 15W – 15VA
- ✓ Flashing unit: Xenon lamp 15 or 21 Joules
- ✓ Acoustic unit: 110 dB at 1 m.
- ✓ Telephone interface: electronic relay circuit
- ✓ Ringing voltage: 30 to 100 Vac – 25-50 Hz
- ✓ Impedance on the tlph line: > 7 K ohms
- ✓ Output Level: adjustable by internal trimmer
- ✓ Output tone: low/high, continuous/blinking
- ✓ Special functions: working also during pauses between rings
- ✓ manufacturer: lelas-france
دریافت فایل ضمیمهEx-Proof Signal Horns dHH-dHHR
- ✓ Ex II 2 G Ex de IIC T5/T6
- ✓ Ex II 2 D Ex tD A21 IP66 T95 °C/T80 °C
- ✓ -20 °C ≤ Ta ≤ +75 °C/+70 °C
- ✓ Zone 1, 2, 21, 22
- ✓ loud signal horn with typical horn tone
- ✓ for use in explosion endangered areas of zone 1 and 2
- ✓ modular system with synthetic housing made of glassfibre
- ✓ reinforced polyester
- ✓ flameproof chamber ‘d’ – terminal connection chamber in
- ✓ protection class increased safety ‘e’
- ✓ lower weight – robust and corrosion proof design
- ✓ insulation class II – no equipotential bonding required
- ✓ DC models with electronic contact breaker – significantly
- ✓ higher lifetime
- ✓ model dHHR with integrated telephone call current relay
- ✓ manufacturer: Auer Signal - Austria
دریافت فایل ضمیمهEx-Proof Signal Bells dHW-dHWR
- ✓ Ex II 2 G Ex de IIC T6
- ✓ Ex II 2 D Ex tD A21 IP66 T80 °C
- ✓ -20 °C ≤ Ta ≤ +40 °C
- ✓ Zone 1, 2, 21, 22
- ✓ loud signal bell with typical bell tone
- ✓ for use in explosion endangered areas of zone 1 and 2
- ✓ modular system with synthetic housing made of glassfibre
- ✓ reinforced polyester
- ✓ flameproof chamber ‘d’ – terminal connection chamber in
- ✓ protection class increased safety ‘e’
- ✓ lower weight – robust and corrosion proof design
- ✓ insulation class II – no equipotential bonding required
- ✓ DC models with electronic contact breaker – significantly
- ✓ higher lifetime
- ✓ model dHWR with integrated telephone call current relay
- ✓ manufacturer: Auer Signal - Austria
دریافت فایل ضمیمه
