Products » Electrical » Ex Panel

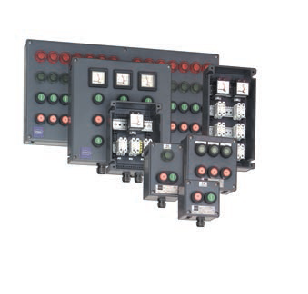

✓ Cortem Group manufactures electrical panels and control batteries, according to customer’s specification, with junction boxes in copperfree aluminium alloy (GALSI 13 - UNI 4514), in glass reinforced polyester, or in stainless steel
✓ Such equipment can be installed in lighting, motive power distribution and motor control valves systems and in panels with sockets
✓ They are provided with differently adjusted switches and control or signal electrical and electronic devices
✓ They are provided with various current rated switches and ready-to-use, finished with epoxy powder paint, suitable for marine and corrosive surroundings
✓ They can be manufactured in execution Ex d IIC, IIB, Ex de, watertight, single or double front, complete with canopy and lighting devices, with a structure in hot dip or galvanized steel or in stainless steel
✓ Suitable for indoor installation or outdoor in chemical, petrochemical, refining plants and in any other industrial process with a potentially explosive atmosphere due to the presence of gas, vapours and flammable powders
✓ Equipment for electrical systems in areas with risk of explosion
✓ Basis of lighting engineering
✓ Use of lighting fixtures equipped with electronic ballast
✓ manufacturer: cortem group-italy

✓ Enclosures made of glass-fibre reinforced polyester resin
✓ 8 basic enclosure sizes with various enclosure heights
✓ Can be combined to larger units
✓ Equipped with built-in devices for snap-on mounting – Control devices – Indicating lamps – Illuminated pushbuttons – Control switches – Ammeters – Voltmeters
✓ Options available with: – Flanges – Cover hinges – Flange enclosures – Brass plates, Metal cable glands
✓ Ex II 2 G Ex de ia/ib [ia/ib] mq IIA, IIB, IIC T6, T5, T4/ Ex II 2 D Ex tD A21 IP6X T80°C, T95°C, T130°C
✓ Certificate:PTB 01 ATEX 1024
✓ Rated voltage max. 1100 V AC / DC
✓ Degree of protection IP66 (depending on the cable entries and cable glands used)
✓ manufacturer: stahl-germany

✓ Circumferential protection channel prevents water entry
✓ Extended temperature range due to high-quality seal materials
✓ Optionally with hinges / cam locks or screw-on cover
✓ Hinge versions with large opening angle 130°
✓ Flange plates tightened from the outside enables simple installation
✓ Standard sizes on stock
✓ Special sizes on request
✓ Ex d e ia/ib [ia/ib] ma mb q IIA, IIB, IIC T6, T5, T4 Gb / Ex tb IIIC IP66 T130°C, T95°C, T80°C Db
✓ Certificate:PTB 09 ATEX 1109
✓ operational voltage max. 1100 V AC / DC depending on explosion protected components used
✓ Rated operational current max. 630 A depending on explosion protected components used
✓ Ambient temperature -60 ... +85 °C ... depending on explosion protected components used
✓ manufacturer: stahl-germany
